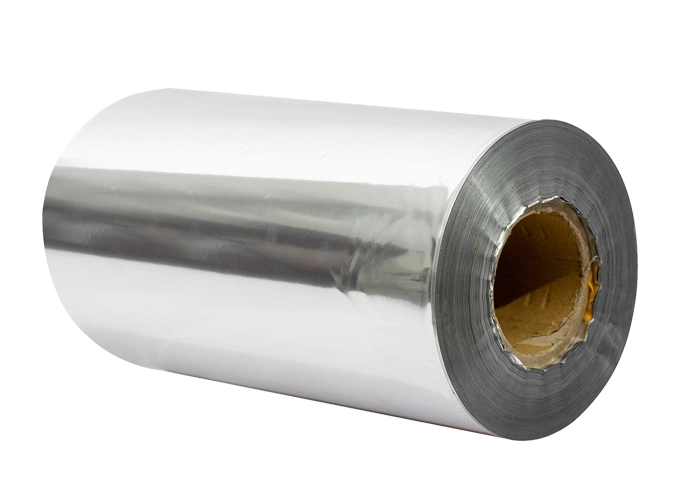

Fumed Silica Film

SNG (gas-silicon) is a high-barrier film developed for gas-silicon vacuum insulation panels. It has excellent anti-aging, oxygen and water resistance properties. The porous structure of the gas-silicon film has a strong adsorption effect on water vapor and is resistant to external pressure With low sensitivity and longer lifespan, it is suitable for scenes requiring long lifespan, such as construction.

INQUIRE

Specification of Fumed Silica Film

product nameunitSNG (gas-silicon) Fumed Silica Filmtest method
thicknessμm93GB/T6672
widthmm200-1100GB/T21302
Puncture strengthN21GB/T21302
Total solvent residuemg/㎡<5BS6455:1984
Helium transmission ratembar·L/(S·㎡)5*10-8Intrinsic benchmark
water vapor transmission rateg/㎡·24hr<0.01GB1037
Oxygen transmission ratecc/㎡·d<0.1GB/T31354
seal strengthN/15mm>60QB/T2358
High and low temperature aging 80℃→-30℃reciprocating cycle for 28 days,65%RH△k=mW/(m·k)≤1.0GB/T39548
High temperature and high humidity aging 70℃,90%RH aging for 30 days△k=mW/(m·k)≤2GB/T39548
features/cost-effective,/
The performance is fully ahead of the foreign products of the same model


Video of Fumed Silica Film


Advantages of Fumed Silica Film

Cost-Effective
Cost-Effective
01
The Performance Is Fully Ahead Of The Foreign Products Of The Same Model.
The Performance Is Fully Ahead Of The Foreign Products Of The Same Model.
02
